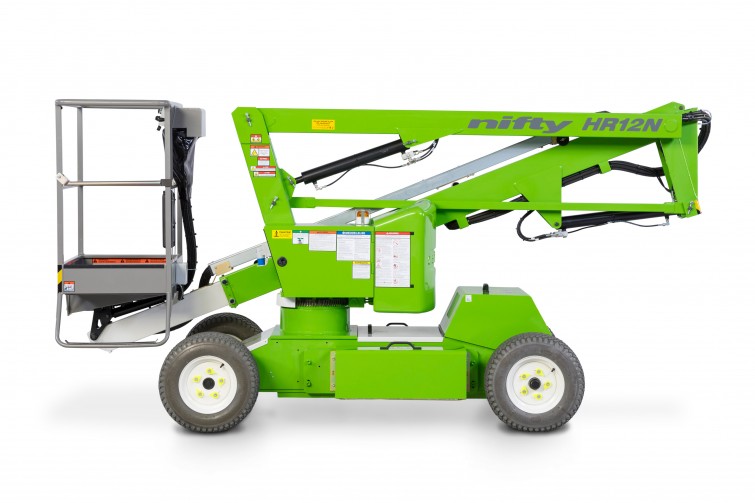

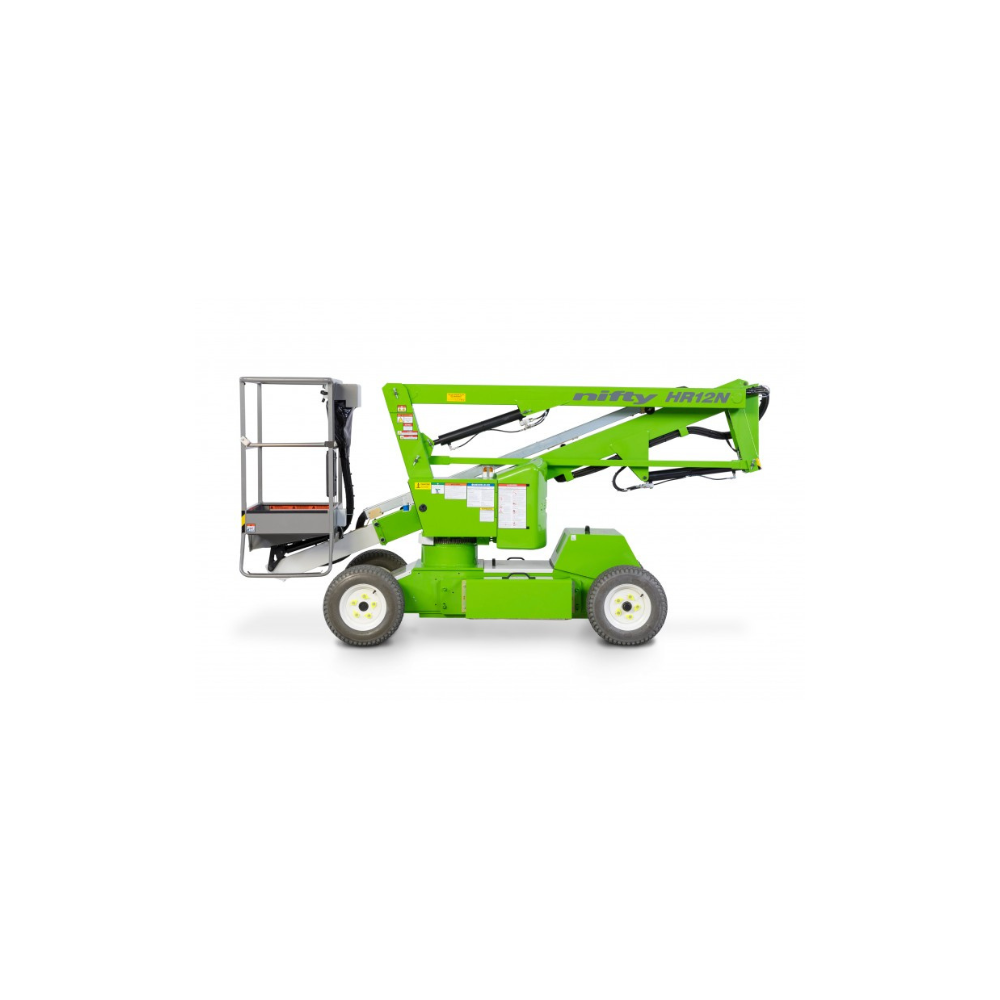

The HeightRider 12 Narrow (HR12N) self-propelled boom lift is one of the most versatile and reliable machines in its class.
It is designed to give maximum reach performance from the lightest, most compact base possible. A telescopic upper boom gives the HR12N improved accuracy when positioning the platform, and superb manoeuvrability makes it ideal for a wide range of applications.
With a 1.50m narrow chassis, the HR12N is ideal for working in factories, warehouses or anywhere that space is restricted.
Its Bi-Energy power allows the HR12N to work for extended periods inside and outside, making it the perfect all-rounder.
| Working Height (A) | 12.2 m |
| Working Outreach (C) | 6.1 m |
| Platform Height (B) | 10.2 m |
| Machine Width (F) | 1.5 m |
| Machine Height (D) | 1.9 m |
| Machine Length (J) | 4.1 m |
| Travel Speed | 3.4 km |
| Gradeability | 25% / 14° |
| Turning Radius | 4.2 m |
| Minimum Weight | 3435 kg |
| Safe Working Load | 200 kg |
| Cage Width | 1.1 m |
| Cage Depth | 0.65 m |
| Power Options | Bi-Energy (Engine & Battery) |
