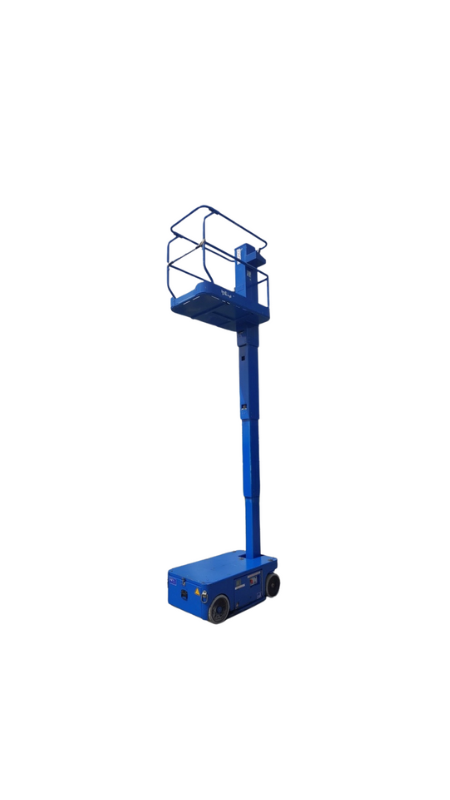

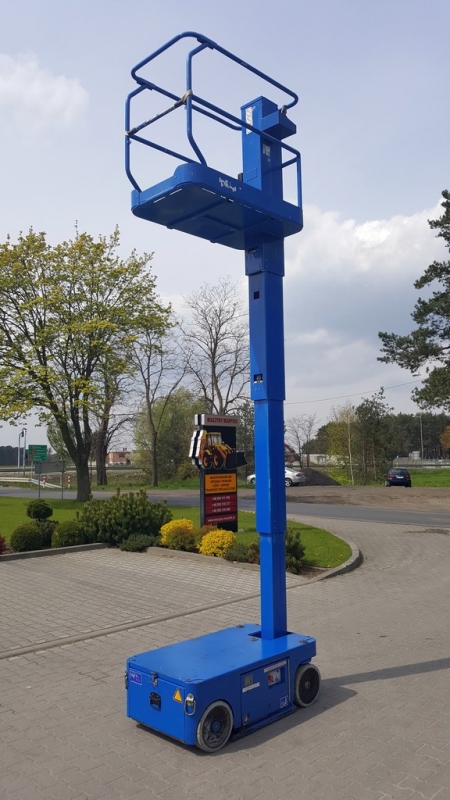

UpRight TM12

This compact aerial platform offers a maximum working height of 5.7 meters and a platform capacity of 227 kg, making it ideal for a range of indoor and outdoor tasks. With a lightweight design (776 kg gross weight) and non-marking tires, it provides excellent maneuverability and stability, especially in tight spaces, with a gradeability of 14˚. Powered by a 24V DC electric motor and equipped with one-hand proportional controls, it’s designed for efficient and safe operation in various environments.

• Max. Working Height (A): 5.7 m
• Max. Platform Height (B): 3.7 m
• Max. Drive Height: 3.7 m
• Platform Capacity (SWL): 227 kg
• Platform Size (Inside): 0.74 m x 1.04 m
• Width (C): 0.76 m
• Stowed Height (D): 1.7 m
• Stowed Length (E): 1.36 m
• Gross Weight: 776 kg
• Drive Speed (Max): 3.65 km/h
• Drive Speed (Platform Raised): 1.0 km/h
• Gradeability: 14˚ / 25%
• Inside Turning Radius: 0.37 m
• Ground Clearance: 76 mm
• Lift Speed (Raise/Lower): 18 seconds / 25 seconds
• Drive System: Dual front hydraulic motors
• Tyres: non-marking
• Battery Charger: 90V–240V, 25 amp automatic
• Parking Brake: 2-wheel, spring-applied, hydraulically-released, with manual overdrive
• Control System: One-hand proportional controls
• Power Source: 24V 4hp DC electric motor, 4 × 220 Ah batteries
